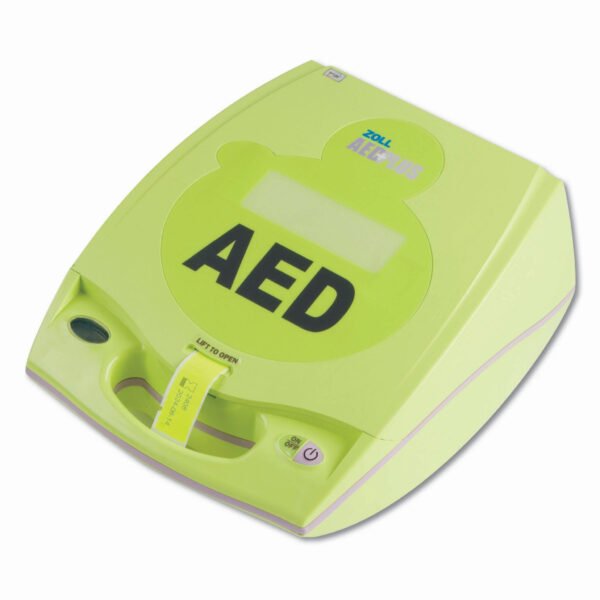

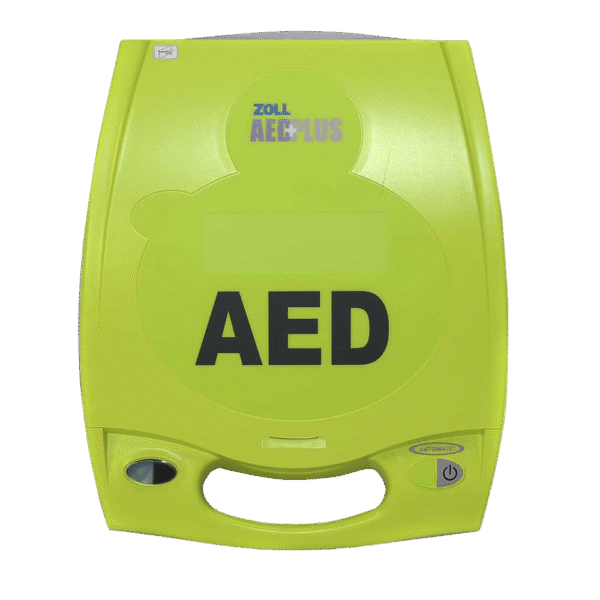

Zoll AED Plus Fully Automatic AED w/Carry Case

he ZOLL AED Plus is the only AED that provides real-time CPR feedback for compression depth and rate, making it ideal for professional responders and workplaces requiring advanced life support capabilities. Features 7-year warranty, 5-year battery life, and unique CPR coaching technology.

Model Options: Semi-Automatic & Fully Automatic
Key Feature: Real CPR Help® with depth/rate feedback
Price Range: $1,695 – $1,995 (complete packages available)
Best For: Schools, offices, gyms, emergency services

ZOLL AED Plus Models & Configurations

Semi-Automatic ZOLL AED Plus

Manual Shock Control: The semi-automatic model provides complete user control over shock delivery. After analyzing the heart rhythm, the device advises when a shock is needed, but the operator must press the shock button to deliver therapy.

Ideal Applications:

• Professional responders who want control over timing
• Training environments where instructors demonstrate proper technique
• Healthcare settings requiring precise shock coordination
• Emergency services needing operational flexibility

Fully Automatic ZOLL AED Plus

Automatic Shock Delivery: The fully automatic model delivers shocks automatically after providing clear warnings and ensuring the area is clear. No manual shock button activation required.

Ideal Applications:

• Public access locations with untrained users
• Workplace programs with minimal AED training
• Schools and community centers with lay responders
• High-stress environments where automatic operation reduces user burden

Real CPR Help® Technology: Revolutionary Feedback System

CPR-D-padz™ Advanced Electrode System

Compression Depth Monitoring: The ZOLL AED Plus is the only AED that measures actual compression depth through proprietary CPR-D-padz technology, providing real-time audio feedback to improve CPR effectiveness.

Real-Time Voice Coaching:

• “Push Harder” – when compressions are too shallow (less than 2 inches)
• “Good Compressions” – when depth and rate are optimal
• “Release Completely” – when recoil is incomplete
• Adaptive Metronome – helps maintain 100-120 compressions per minute

CPR Performance Analytics

Visual Display Feedback: The LCD screen shows compression depth in real-time with bar graph indicators, allowing rescuers to see their CPR performance while receiving audio coaching.

Why Depth Matters: Studies show that adequate compression depth (at least 2 inches for adults) is critical for survival. The ZOLL AED Plus ensures rescuers consistently achieve the proper depth.

Rate Guidance: The adaptive metronome adjusts to optimal compression rate (100-120 per minute), helping maintain effective circulation during cardiac arrest.

ZOLL AED Plus Specifications & Features

Technical Specifications

Power & Performance:

• Battery Type: 12V Lithium (non-rechargeable)
• Battery Life: 5 years standby / 440 minutes continuous
• Shock Energy: Biphasic, 120-200 joules
• Charge Time: 8 seconds to 200 joules
• Analysis Time: 9 seconds maximum

Environmental Durability:

• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -30°C to 60°C (-22°F to 140°F)
• Humidity Resistance: 5% to 95% relative humidity
• Water Resistance: IP55 rated for dust and water protection
• Drop Testing: Survives 1.5-meter drops per IEC standards

Advanced User Interface

Clear Audio/Visual Guidance:

• Large LCD display with text prompts and CPR bar graph
• Loud, clear voice prompts (95 dB at 1 meter)
• Bright LED status indicators for ready/maintenance states
• Intuitive button layout for emergency operation

Multi-Language Support: Available in multiple languages including English, Spanish, French, and others to serve diverse communities.

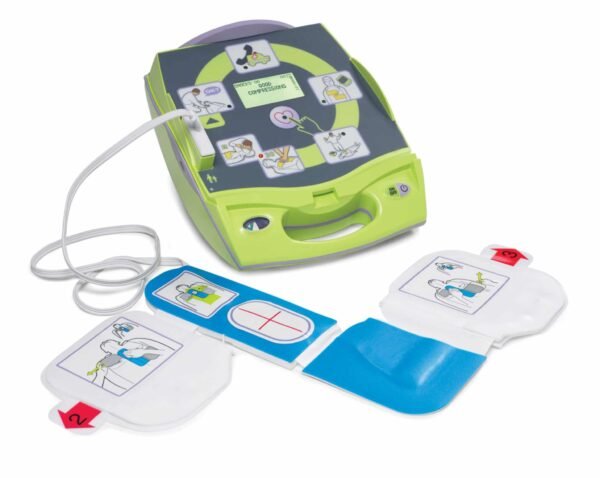

CPR-D-padz™ Electrode System

Superior Electrode Design

5-Year Shelf Life: ZOLL CPR-D-padz electrodes offer industry-leading 5-year shelf life, reducing replacement frequency and maintenance costs compared to 2-year standard pads.

CPR Hand Placement Guide: Electrodes feature hand placement graphics showing optimal hand position for chest compressions, helping rescuers maintain proper technique.

Easy Application:

• Single-use, pre-connected design eliminates connection errors
• Clear anatomical placement graphics on each pad
• Strong adhesive gel ensures reliable skin contact
• Large electrode surface area optimizes defibrillation effectiveness

Pediatric Capability

Pedi-padz II for Children: Optional pediatric electrodes provide age-appropriate therapy for children under 8 years old or weighing less than 55 pounds.

Automatic Algorithm Adjustment: When Pedi-padz II are connected, the AED Plus automatically:

• Reduces shock energy to pediatric-appropriate levels
• Adjusts voice prompts for child-specific rescue techniques
• Modifies CPR coaching for smaller chest cavity anatomy
